SHARKCAGE / Tactical Baskets / HAWK / HAWK M
CODE
SC-BA-MD-GT-01
Download product sheet

HAWK M

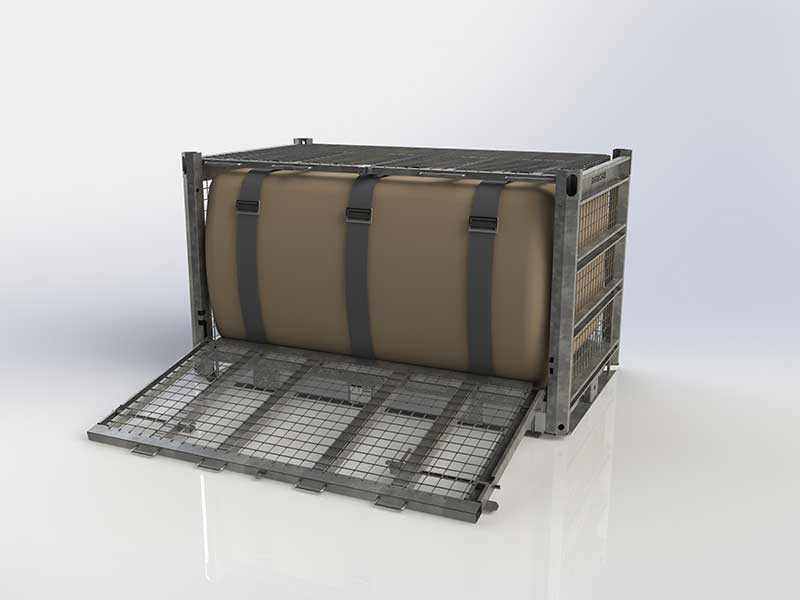

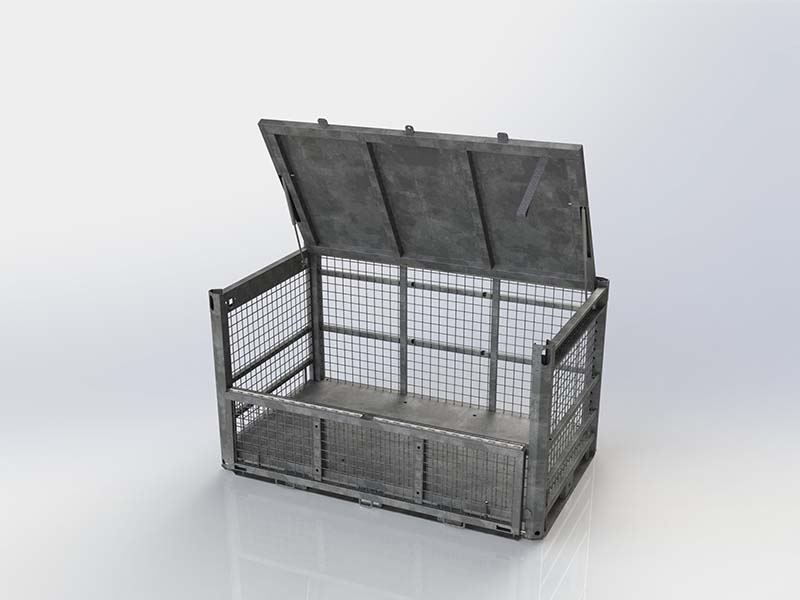

THE HAWK is similar to the CONDOR MEDIUM, but half the height. Access the content from the top or by folding down the front gate.
( W / D / H )
70 '' / 41 '' / 39''
178cm / 105cm / 100cm
Weight
485lbs
220kg
Capacity
5000lbs
2270kg
Shelf Capacity
n/a
n/a
Material
Extra high strength steel

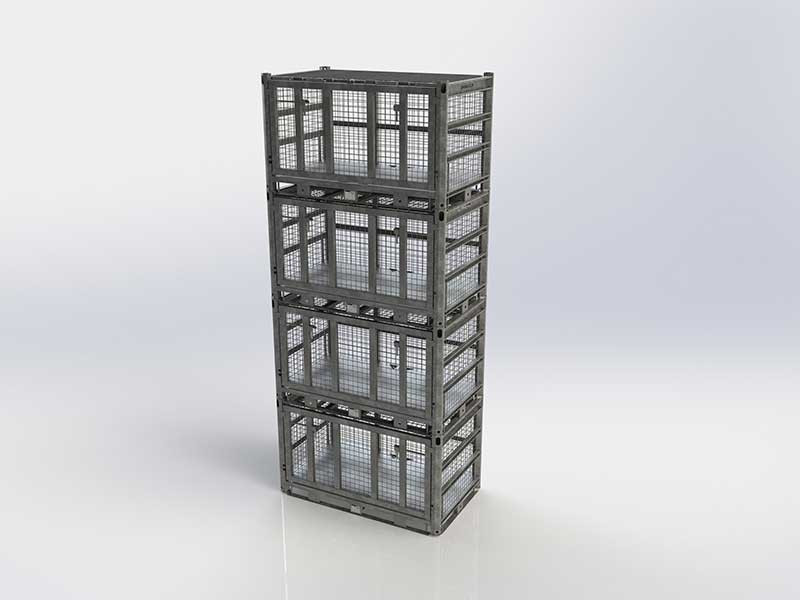

Stackability
4 cages
Shelves
1 compartment - 1 level
Shelf Positions
n/a
Platform Fit
463L Air Pallet
QTY: 4 EA (stacked 2 high)
Footprint Utilization: 100%

463L Air Pallet

External dimensions (W / D / H) [in]:
108 / 88 / 2
Internal dimensions (W / D / H) [in]:
104 / 84 / 89
Note: Internal dimensions are usable space with open tie downs
Tactical baskets / Hawk Tactical baskets / Hawk

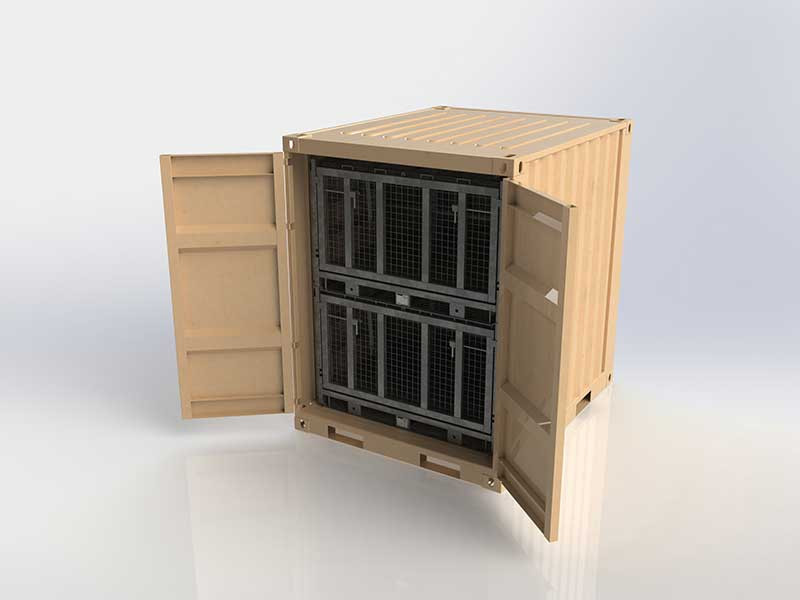

TRICON I
QTY: 4 EA
Footprint Utilization: 88%

TRICON I

External dimensions (W / D / H) [in]:
77 / 96 / 96
Internal dimensions (W / D / H) [in]:
74 / 90 / 89
Door opening (W / H) [in]:
74 / 85
Deviation from standard: Doors on one end
tactical basket / hawk m tactical basket / hawk m
TRICON II
QTY: 4 EA
Footprint Utilization: 88%

TRICON II

External dimensions (W / D / H) [in]:
77 / 96 / 96
Internal dimensions (W / D / H) [in]:
74 / 88 / 88
Door opening (W / H) [in]:
74 / 85
Deviation from standard: Doors on both ends
Tactical basket / Hawk M Tactical basket / Hawk M
10ft Standard BICON
QTY: 6 EA (stacked 2 high)
Footprint Utilization: 84%

10ft Standard BICON

External dimensions (W / D / H) [in]:
96 / 118 / 102
Internal dimensions (W / D / H) [in]:
92 / 111 / 93
Door opening (W / H) [in]:
92 / 89
tactical basket / hawk m tactical basket / hawk m
10ft x 8ft BICON
QTY: 2 EA
Footprint Utilization: 84%

10ft x 8ft BICON

External dimensions (W / D / H) [in]:
57 / 118 / 96
Internal dimensions (W / D / H) [in]:
92 / 112 / 89
Door opening (W / H) [in]:
92 / 83
tactical basket / hawk m tactical basket / hawk m
20 ft standard shipping container
QTY: 12 (stacked 2 high) EA
Footprint Utilization: 1%

20 ft standard shipping container

External dimensions (W / D / H) [in]:
96 / 238 / 102
Internal dimensions (W / D / H) [in]:
92 / 231 / 93
Door opening (W / H) [in]:
92 / 89
tactical basket / hawk m tactical basket / hawk m
40ft standard shipping container
QTY: 26 EA (stacked 2 high)
Footprint Utilization: 1%

40ft standard shipping container

External dimensions (W / D / H) [in]:
96 / 480 / 102
Internal dimensions (W / D / H) [in]:
92 / 474 / 93
Door opening (W / H) [in]:
92 / 89
tactical basket / hawk m tactical basket / hawk m
40ft HC (High Cube)
QTY: 26 EA
Footprint Utilization: %

40ft HC (High Cube)

External dimensions (W / D / H) [in]:
96 / 480 / 114
Internal dimensions (W / D / H) [in]:
92 / 474 / 106
Door opening (W / H) [in]:
92 / 102
Deviation from standard: Higher than the standard 40'
tactical basket / hawk m tactical basket / hawk m
20ft x 8ft shipping container
QTY: 12 EA (stacked 2 high)
Footprint Utilization: %

20ft x 8ft shipping container

External dimensions (W / D / H) [in]:
96 / 238 / 96
Internal dimensions (W / D / H) [in]:
92 / 232 / 88
Door opening (W / H) [in]:
92 / 83
Deviation from standard: Lower than the standard 20' container.
tactical basket / hawk m tactical basket / hawk m
