PRODUCTS / SHARKCAGE / WEAPON STORAGE / TACTICAL LOCKER CWM
CODE
SC-CW-MD-2D-03

Download product sheet

TACTICAL LOCKER CWM

Rolling cage with forklift pockets, sling loading points, locking mechanism compatible with padlock, corrosion protected by hot-dip galvanization, cargo net on the top, includes weather cover and bracing.

External dimension
(Width / Depth / Height)
41 '' / 26 '' / 75''
Weight
375lbs
Capacity
3000lbs
Shelf Capacity
1000lbs
Material
HDG Steel
Stackability
None
Opening (Width / Height)
36''
 /
63''
Shelves
2
Shelf Positions
30
metric / US (imperial)
TACTICAL LOCKER CWM SC-CW-MD-2D-03 1 closed doors

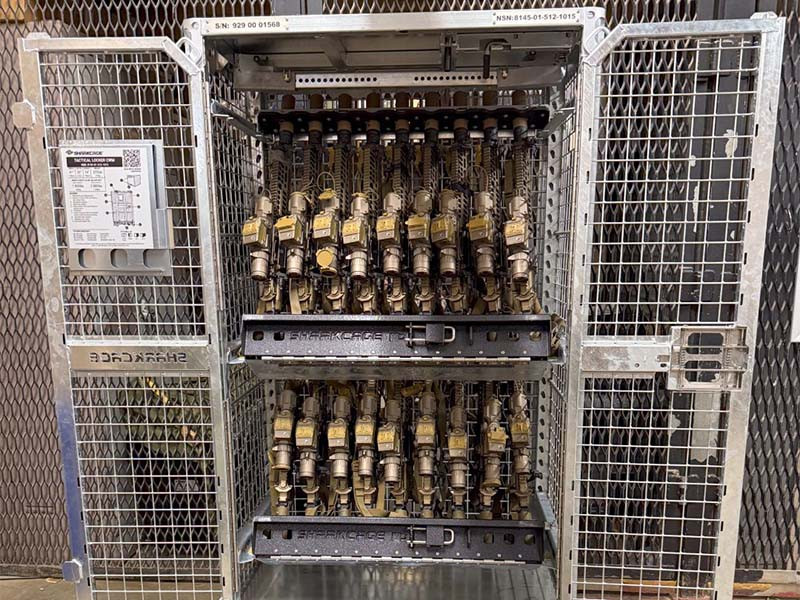

TACTICAL LOCKER CWM SC-CW-MD-2D-03 2 with two times nine M7
TACTICAL LOCKER CWM SC-CW-MD-2D-03 3 With M320 M240B and M250
TACTICAL LOCKER CWM SC-CW-MD-2D-03 4 in TRICON
CWM WEAPONS RACK

CWM WEAPONS RACK

Recomended QUANTITY
2 EA
CWM CREW WEAPONS HOLDER

CWM CREW WEAPONS HOLDER

Recomended QUANTITY
1 EA
CONTAINER RAMP

CONTAINER RAMP

Recomended QUANTITY
1 EA
Platform Fit
TRICON II
QTY: 2 EA
Footprint Utilization: 90%

TRICON II

External dimensions (W / D / H) [in]:
77 / 96 / 96
Internal dimensions (W / D / H) [in]:
74 / 88 / 88
Door opening (W / H) [in]:
74 / 85
Deviation from standard: Doors on both ends
TRICON I
QTY: 2 EA
Footprint Utilization: 86%

TRICON I

External dimensions (W / D / H) [in]:
77 / 96 / 96
Internal dimensions (W / D / H) [in]:
74 / 90 / 89
Door opening (W / H) [in]:
74 / 85
Deviation from standard: Doors on one end
ISU 90 4-DOOR
Footprint Utilization: 84%

ISU 90 4-DOOR

External dimensions (W / D / H) [in]:
108 / 88 / 91
Internal dimensions (W / D / H) [in]:
102 / 82 / 83
Door opening (W / H) [in]:
94 / 81
Capacity [lb]:
10000
Weight [lb]:
1720
Deviation from standard: Doors on each 108 axis
Note: Inside is usable space without rails, divider wall and other fixtures subtracted. Usable space with divider wall in is 39.89 in
10ft Standard BICON
Footprint Utilization: 62%

10ft Standard BICON

External dimensions (W / D / H) [in]:
96 / 118 / 102
Internal dimensions (W / D / H) [in]:
92 / 111 / 93
Door opening (W / H) [in]:
92 / 89
10ft x 8ft BICON
Footprint Utilization: 62%

10ft x 8ft BICON

External dimensions (W / D / H) [in]:
57 / 118 / 96
Internal dimensions (W / D / H) [in]:
92 / 112 / 89
Door opening (W / H) [in]:
92 / 83
40ft HC (High Cube)
QTY: 22 EA
Footprint Utilization: 55%

40ft HC (High Cube)

External dimensions (W / D / H) [in]:
96 / 480 / 114
Internal dimensions (W / D / H) [in]:
92 / 474 / 106
Door opening (W / H) [in]:
92 / 102
Deviation from standard: Higher than the standard 40'
40ft standard shipping container
QTY: 22 EA
Footprint Utilization: 55%

40ft standard shipping container

External dimensions (W / D / H) [in]:
96 / 480 / 102
Internal dimensions (W / D / H) [in]:
92 / 474 / 93
Door opening (W / H) [in]:
92 / 89
20 ft standard shipping container
Footprint Utilization: 51%

20 ft standard shipping container

External dimensions (W / D / H) [in]:
96 / 238 / 102
Internal dimensions (W / D / H) [in]:
92 / 231 / 93
Door opening (W / H) [in]:
92 / 89
20ft x 8ft shipping container
Footprint Utilization: 51%

20ft x 8ft shipping container

External dimensions (W / D / H) [in]:
96 / 238 / 96
Internal dimensions (W / D / H) [in]:
92 / 232 / 88
Door opening (W / H) [in]:
92 / 83
Deviation from standard: Lower than the standard 20' container.
