PRODUCTS / SHARKCAGE / ORIGINAL / original small
Product Code
SC-CI-SM-3P-02
Download product sheet

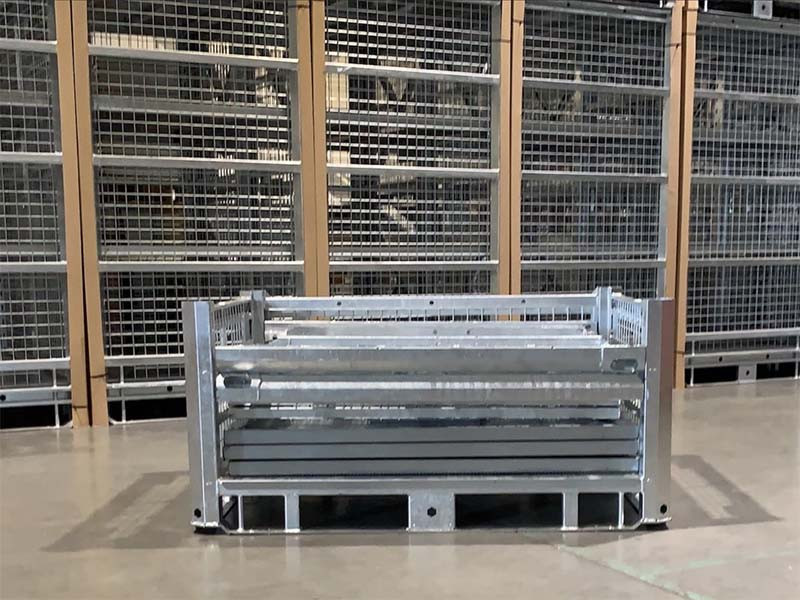

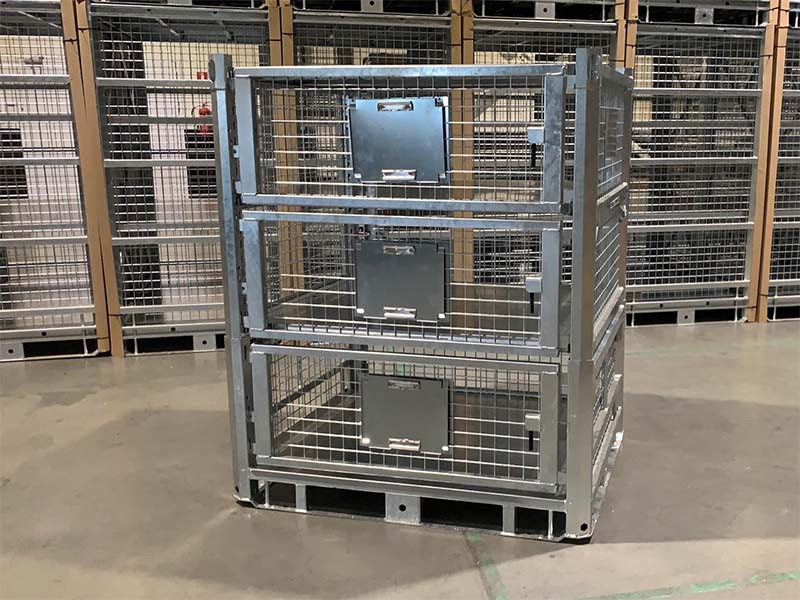

original small

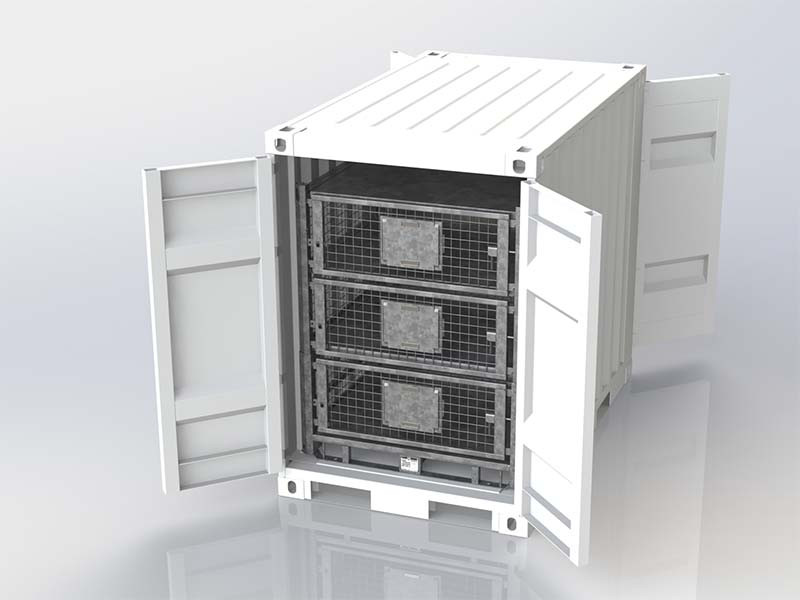

The SMALL is designed to fit two in a Quadcon container. Use this cage in the Quadcon II to allow access to equipment from both sides of the container.
( W / D / H )
52 '' / 42 '' / 68''
132cm / 107cm / 173cm
Weight
430lbs
195kg
Capacity
5000lbs
2270kg
Shelf Capacity
1000lbs
455kg
NSN
8145-01-512-1022
Material
Extra high strength steel
Stackability
15ft
Shelves
3 compartments - 3 levels
Shelf Positions
Multiple

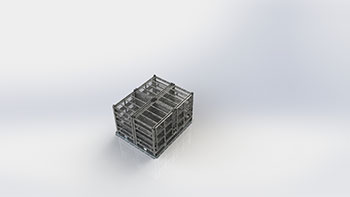

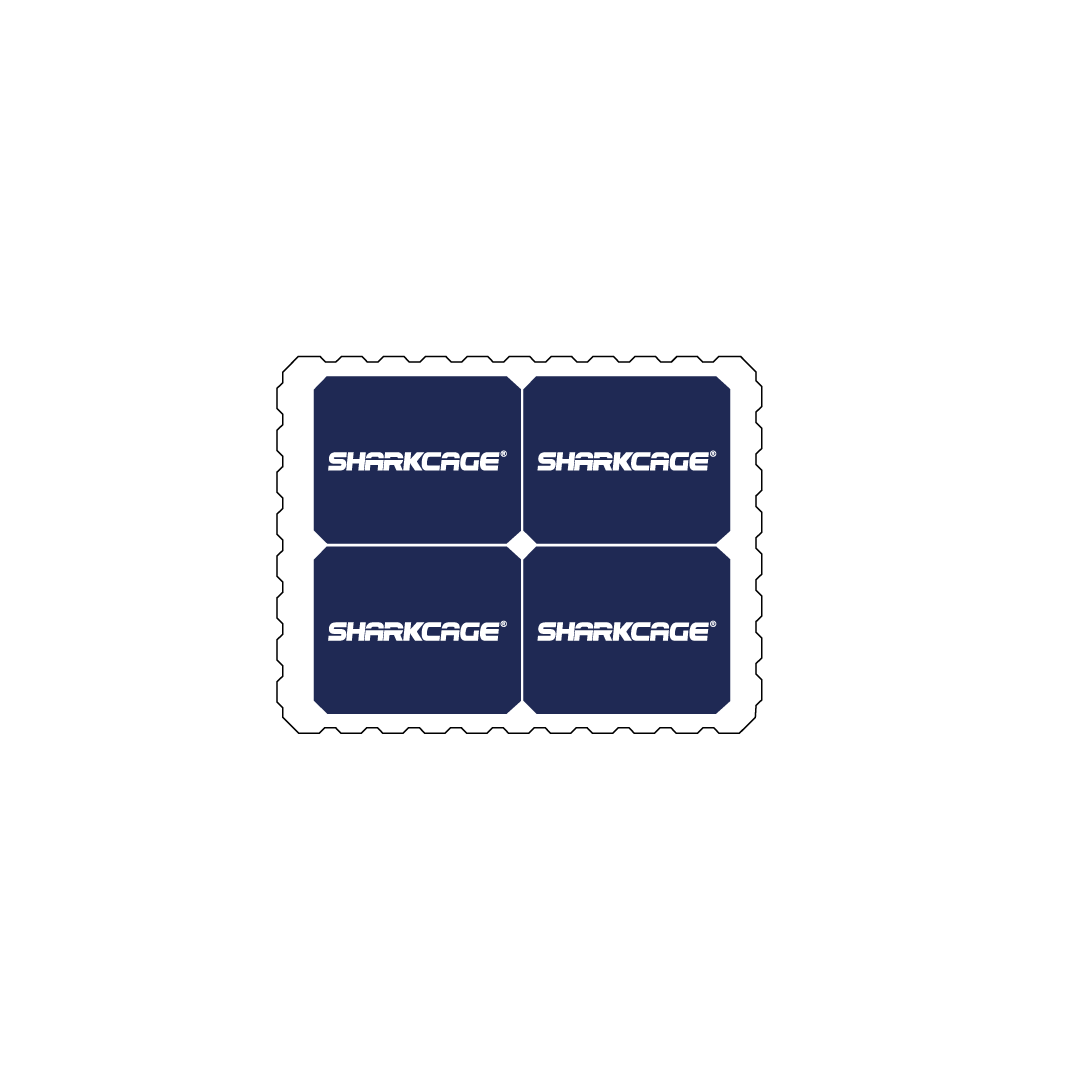

Platform Fit
463L Air Pallet
QTY: 4 EA
Footprint Utilization: 100%

463L Air Pallet

External dimensions (W / D / H) [in]:
108 / 88 / 2
Internal dimensions (W / D / H) [in]:
104 / 84 / 89
Note: Internal dimensions are usable space with open tie downs
The original / Small The original / Small

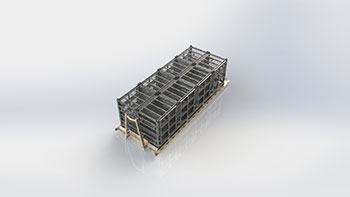

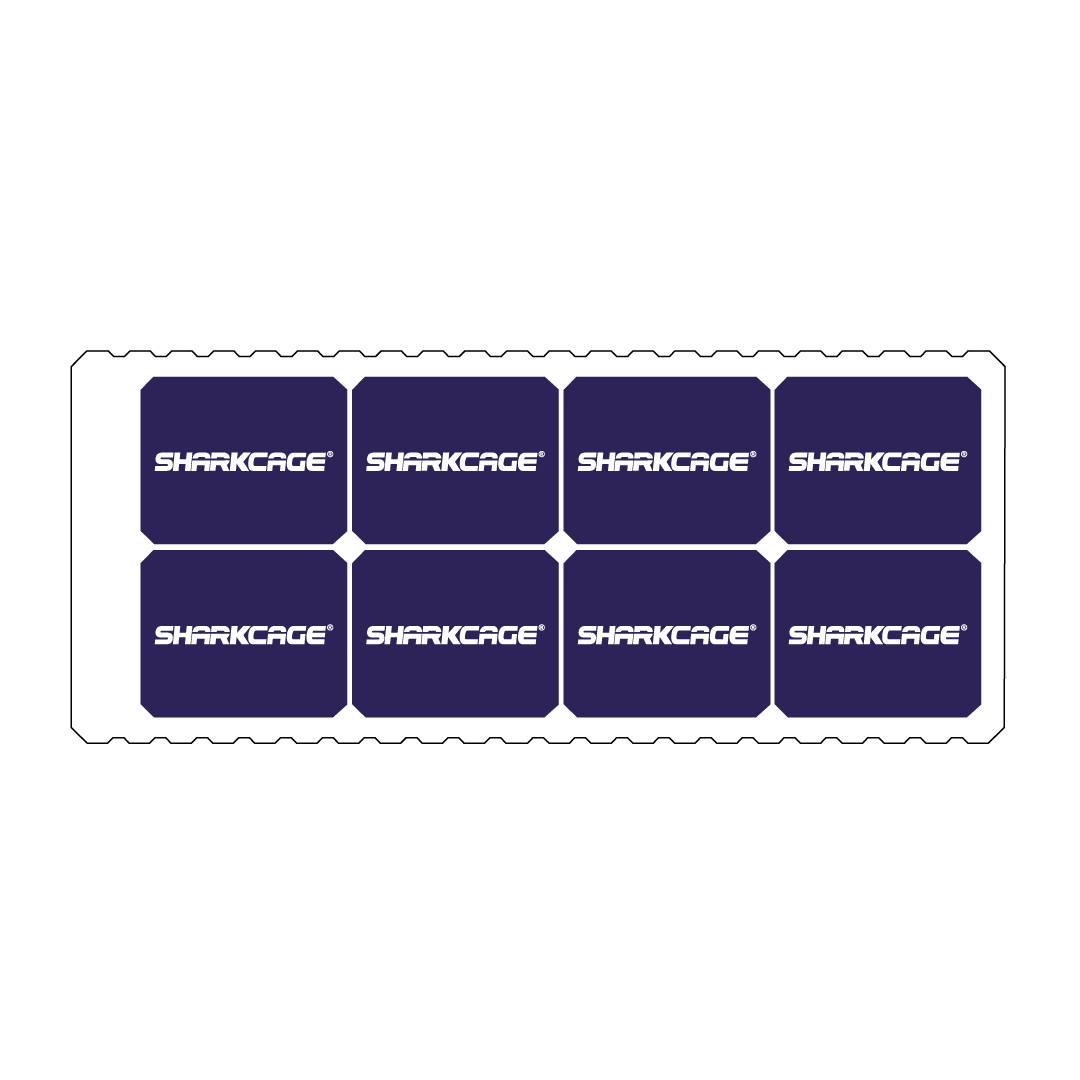

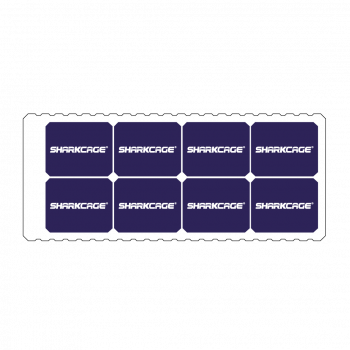

M3 CROP
QTY: 8 EA
Footprint Utilization: 90%

M3 CROP

External dimensions (W / D / H) [in]:
91 / 230 / 10
Internal dimensions (W / D / H) [in]:
89 / 217 / 74
Deviation from standard: Fits inside container
Note: Inside dimensions are usable space with access tie downs, height is limitation
The original / Small The original / Small

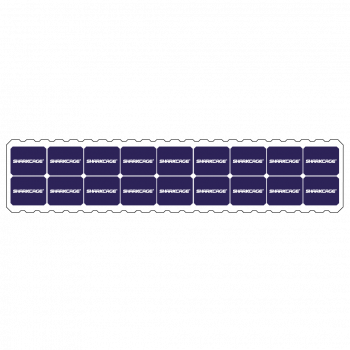

40ft HC (High Cube)
QTY: 18 EA
Footprint Utilization: 90%

40ft HC (High Cube)

External dimensions (W / D / H) [in]:
96 / 480 / 114
Internal dimensions (W / D / H) [in]:
92 / 474 / 106
Door opening (W / H) [in]:
92 / 102
Deviation from standard: Higher than the standard 40'
The original / small The original / small
40ft standard shipping container
QTY: 18 EA
Footprint Utilization: 90%

40ft standard shipping container

External dimensions (W / D / H) [in]:
96 / 480 / 102
Internal dimensions (W / D / H) [in]:
92 / 474 / 93
Door opening (W / H) [in]:
92 / 89
The original / small The original / small

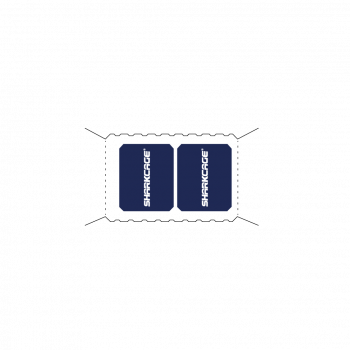

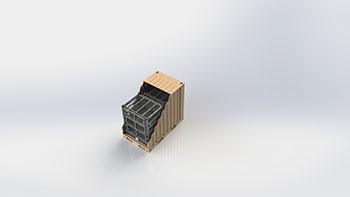

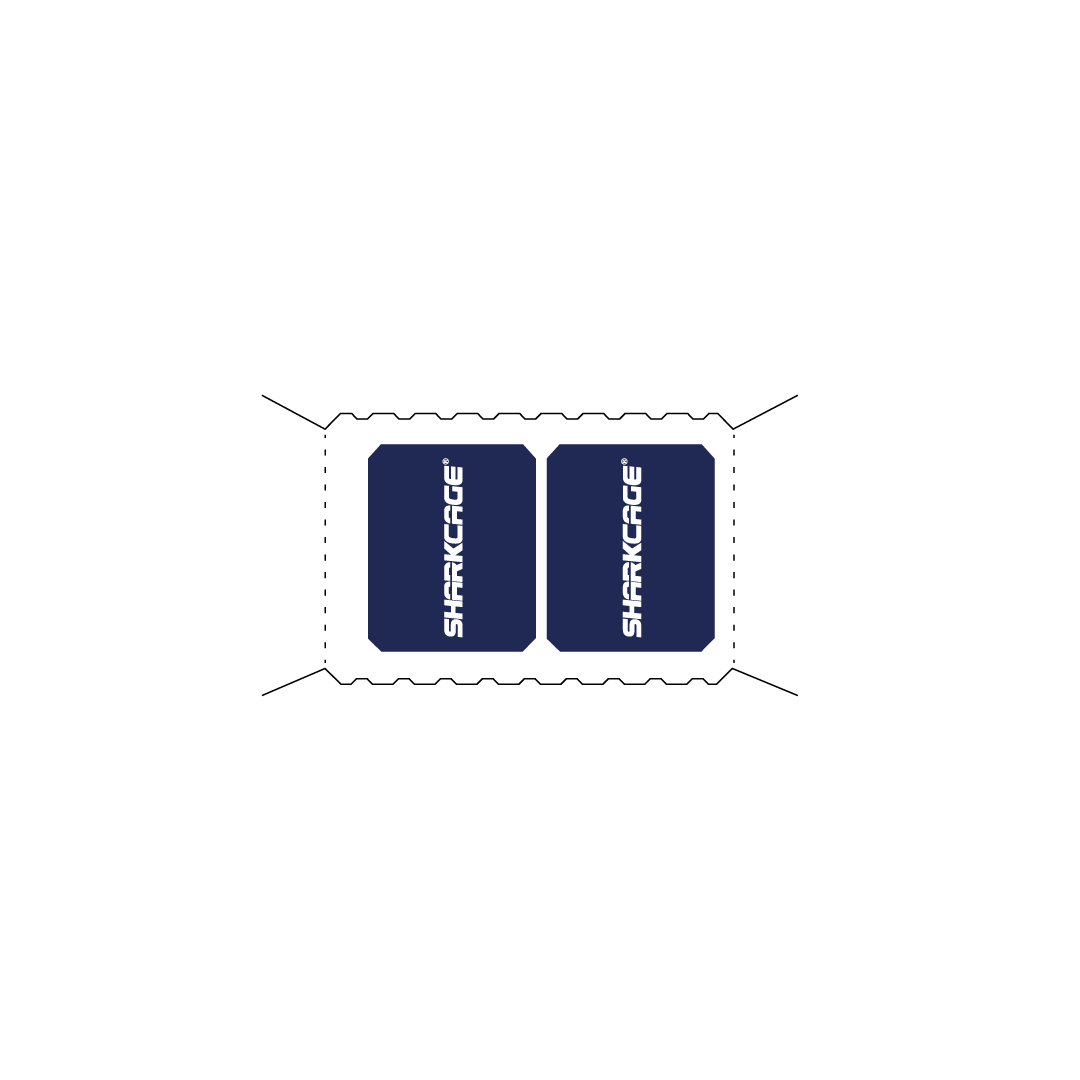

QUADCON 8'
QTY: 2 EA
Footprint Utilization: 86%

QUADCON 8'

External dimensions (W / D / H) [in]:
57 / 96 / 96
Internal dimensions (W / D / H) [in]:
56 / 88 / 88
Door opening (W / H) [in]:
53 / 84
The original / Small The original / Small
QUADCON II USMC
QTY: 2 EA
Footprint Utilization: 86%

QUADCON II USMC

External dimensions (W / D / H) [in]:
57 / 96 / 82
Internal dimensions (W / D / H) [in]:
56 / 90 / 74
Door opening (W / H) [in]:
54 / 70
Deviation from standard: Lower height than Quadcon 8'
The original / Small The original / Small

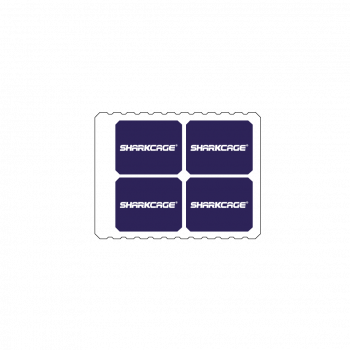

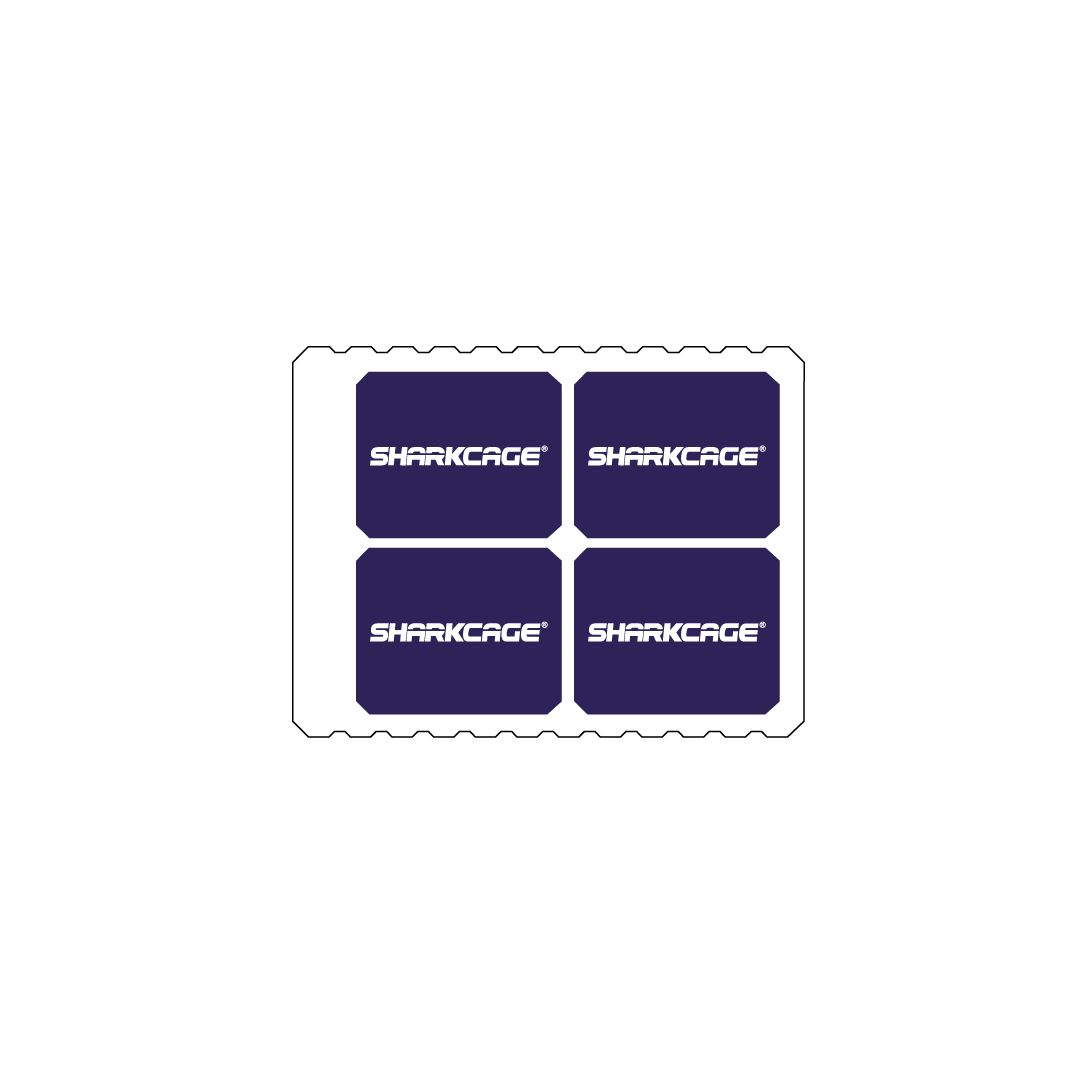

10ft Standard BICON
QTY: 4 EA
Footprint Utilization: 85%

10ft Standard BICON

External dimensions (W / D / H) [in]:
96 / 118 / 102
Internal dimensions (W / D / H) [in]:
92 / 111 / 93
Door opening (W / H) [in]:
92 / 89
The original / Small The original / Small
10ft x 8ft BICON
QTY: 4 EA
Footprint Utilization: 85%

10ft x 8ft BICON

External dimensions (W / D / H) [in]:
57 / 118 / 96
Internal dimensions (W / D / H) [in]:
92 / 112 / 89
Door opening (W / H) [in]:
92 / 83
The original / Small The original / Small

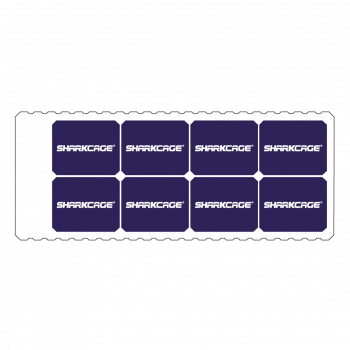

20 ft standard shipping container
QTY: 8 EA
Footprint Utilization: 82%

20 ft standard shipping container

External dimensions (W / D / H) [in]:
96 / 238 / 102
Internal dimensions (W / D / H) [in]:
92 / 231 / 93
Door opening (W / H) [in]:
92 / 89
The original / small The original / small
20ft x 8ft shipping container
QTY: 8 EA
Footprint Utilization: 82%

20ft x 8ft shipping container

External dimensions (W / D / H) [in]:
96 / 238 / 96
Internal dimensions (W / D / H) [in]:
92 / 232 / 88
Door opening (W / H) [in]:
92 / 83
Deviation from standard: Lower than the standard 20' container.
The original / small The original / small

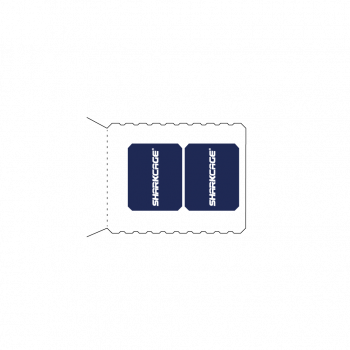

TRICON I
QTY: 2 EA
Footprint Utilization: 67%

TRICON I

External dimensions (W / D / H) [in]:
77 / 96 / 96
Internal dimensions (W / D / H) [in]:
74 / 90 / 89
Door opening (W / H) [in]:
74 / 85
Deviation from standard: Doors on one end
THE ORIGINAL / small THE ORIGINAL / small

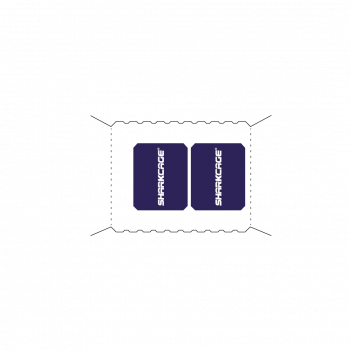

TRICON II
QTY: 2 EA
Footprint Utilization: 67%

TRICON II

External dimensions (W / D / H) [in]:
77 / 96 / 96
Internal dimensions (W / D / H) [in]:
74 / 88 / 88
Door opening (W / H) [in]:
74 / 85
Deviation from standard: Doors on both ends
THE ORIGINAL / small THE ORIGINAL / small
